產品介紹
Built-in Conductor
| Current Sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc… |
Built-in Conductor Current Sensor
| Data Sheet |
Sensing Current |
Function Description |
Operation Voltage |
Operation Temp |
Package Type |
Available |
| WCS38A25 |
0~0.25A |
Sensitivity: 7.0mV/mA Current Sensor |
3.0~12V |
-20~125°C |
3XAXX |
Now |
| WCS37A50 |
0~0.5A |
Sensitivity: 3.5mV/mA Current Sensor |
3.0~12V |
-20~125°C |
3XAXX |
Now |
| WCS2801 |
0~1.0A |
Sensitivity: 2.0mV/mA Current Sensor |
3.0~12V |
-20~125°C |
2X02 |
Now |
| WCS2702 |
0~2.0A |
Sensitivity: 1.0mV/mA Current Sensor |
3.0~12V |
-20~125°C |
2X02 |
Now |
| WCS2705 |
0~5.0A |
Sensitivity: 260mV/A Current Sensor |
3.0~12V |
-20~125°C |
2X02 |
Now |
| WCS2810 |
0~10A |
Sensitivity: 135mV/A Current Sensor |
3.0~12V |
-20~125°C |

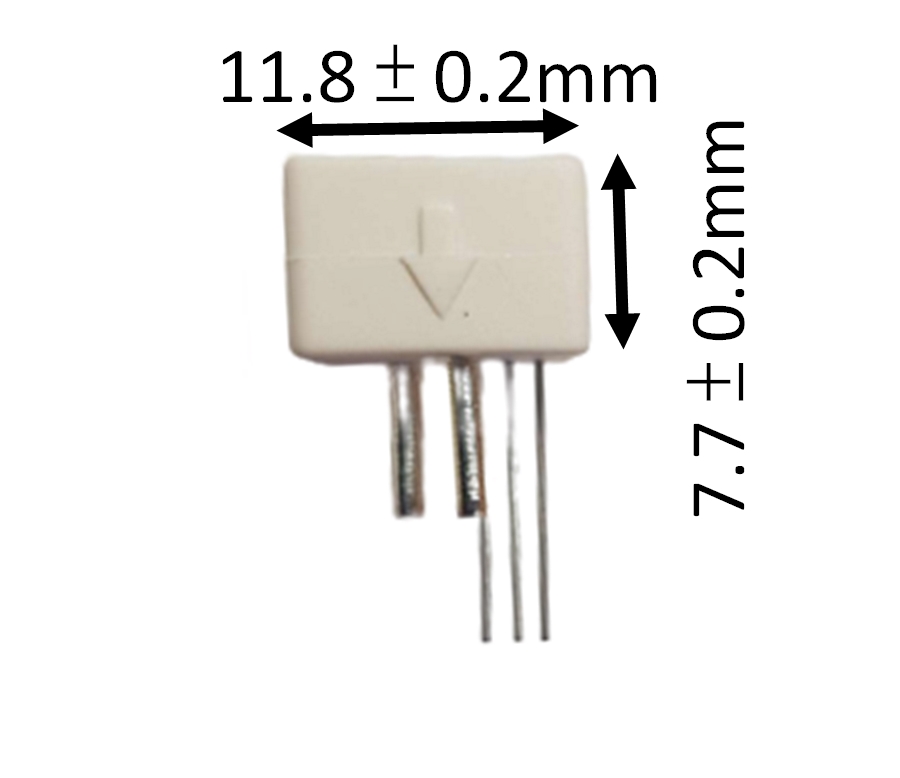

2X20 |
Now |
| WCS2720 |
0~20A |
Sensitivity: 65mV/A Current Sensor |
3.0~12V |
-20~125°C |
2X20 |
Now |
| WCS3740 |
0~40A |
Sensitivity: 32mV/A Current Sensor |
3.0~12V |
-20~125°C |
3X40 |
EOL |
| WCS3750 |
0~60A |
Sensitivity: 32mV/A Current Sensor |
3.0~12V |
-20~125°C |
3X40 |
New |
| WCS2750 |
0~60A |
Sensitivity: 32mV/A Current Sensor |
3.0~12V |
-20~125°C |

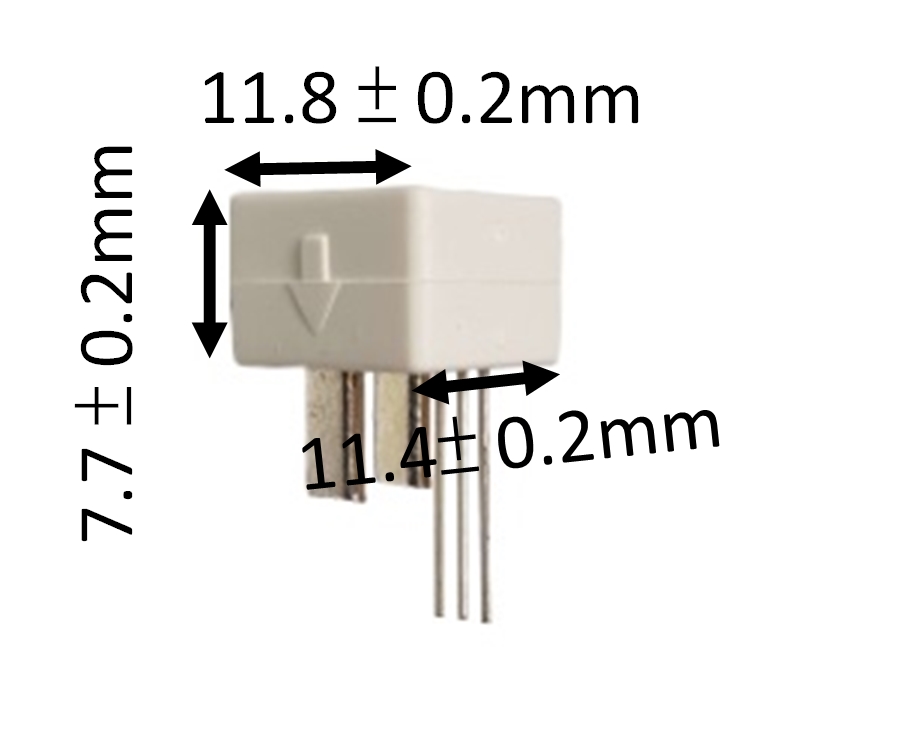

2X50 |
Now |
| Differential outputs |
| WCS2201 |
0~0.8A |
Sensitivity: 2.1mV/mA, Differential outputs with built-in AC to DC rectifier
|
3.0~12V |
-20~125°C |
23X2 |
New |
| WSC2202 |
0~2.5A |
Sensitivity: 560mV/A, Differential outputs with built-in AC to DC rectifier
|
3.0~12V |
-20~125°C |
23X2 |
New |
| WCS2210 |
0~10A |
Sensitivity: 140mV/A, Differential outputs with built-in AC to DC rectifier
|
3.0~12V |
-20~125°C |
232X |
New |
| Adjustable Current Switch |
| WCS2302 |
0~2.0A |
Resolution ±3.0mA, 0~2.0A Adjustable Current Switch |
3.0~12V |
-20~125°C |
23X2 |
New |
| WCS2305 |
0~8.0A |
Resolution ±15mA, 0~8.0A Adjustable Current Switch |
3.0~12V |
-20~125°C |
23X2 |
New |
| WCS2320 |
0~30A |
Resolution ±35mA, 0~30A Adjustable Current Switch |
3.0~12V |
-20~125°C |
232X |
New |
| Back |
|
___________________________#ebebed |
|
|
|
Next>> |
Package
